【引用本文】 高冉, 饶竹, 郭晓辰, . 地下水中91种农药多残留气相色谱-质谱分析方法研究及应用[J]. 岩矿测试, 2021, 40(6): 973-986. doi: 10.15898/j.cnki.11-2131/td.202011170148
GAO Ran, RAO Zhu, GUO Xiao-chen. Analysis of 91 Pesticide Residues in Groundwater by Gas Chromatography-Mass Spectrometry[J]. Rock and Mineral Analysis, 2021, 40(6): 973-986. doi: 10.15898/j.cnki.11-2131/td.202011170148

地下水中91种农药多残留气相色谱-质谱分析方法研究及应用

1.

中国冶金地质总局山东局测试中心, 山东 济南 250014

2.

国家地质实验测试中心, 北京 100037

3.

自然资源部生态地球化学重点实验室, 北京 100037

收稿日期: 2020-11-17  修回日期: 2021-04-22  接受日期: 2021-11-16

基金项目: 中国地质调查局地质调查项目(DD20190323,DD20189627)

作者简介: 高冉, 硕士研究生, 主要从事环境有机污染物分析方法研究。E-mail: 1015933139@qq.com

通信作者: 饶竹, 硕士, 研究员, 主要从事环境有机污染物监测。E-mail: raozhu@126.com

Analysis of 91 Pesticide Residues in Groundwater by Gas Chromatography-Mass Spectrometry

1.

The Testing Center of Shandong Bureau, China Metallurgical Geology Bureau, Jinan 250014, China

2.

National Research Center for Geoanalysis, Beijing 100037, China

3.

Key Laboratory of Eco-Geochemistry, Ministry of Natural Resources, Beijing 100037, China

Corresponding author: RAO Zhu, raozhu@126.com

Received Date: 2020-11-17
Revised Date: 2021-04-22
Accepted Date: 2021-11-16

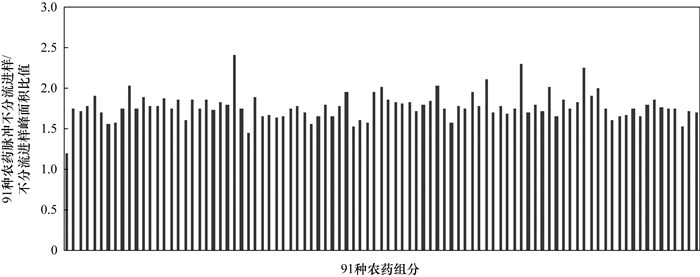

摘要:地下水中多种农药快速检测是全面表征地下水水质、确保地下水安全的重要技术支撑。本文结合现有检测标准和文献中农药需分类分别前处理和测试的问题,采用气相色谱-质谱仪,通过对水样前处理方法和气相色谱-质谱分析条件进行选择和优化,建立了地下水中91种农药气相色谱-质谱同时测定的快速分析方法。经优化,目标物采用脉冲不分流进样,Zebron Multiresidue-2色谱柱分离,分段选择离子扫描,内标法定量,多数农药在1.0~1000μg/L浓度范围内线性良好,相关系数在0.9901~0.9997之间。水样经二氯甲烷液液萃取浓缩后上机测试,各农药方法检出限为3.1~12.5ng/L,平均加标回收率在54.3%~129%之间,相对标准偏差(RSD)为1.2%~20%。本方法快速、简单,准确度高,不仅显著提高了地下水中多种类农药残留分析效率,降低了分析成本;而且方法更适合大批量地下水样品的快速筛查,从而保证了样品分析的时效性。该方法已成功应用于全国地下水污染调查专项。

关键词: 地下水, 农药多残留, 气相色谱-质谱法, 快速分析

要点

(1) 采用液液萃取结合气相色谱-质谱法,建立了地下水中91种农药多残留快速分析方法。

(2) 该方法对农药涵盖的种类和数量多,且检出限低、灵敏度高,可用于地下水中多类别农药快速筛查。

(3) 对中国7个省市231个地下水样品分析,杀虫剂和除草剂都有检出,提出有必要加强对全国地下水中农药残留分析和监测。

Analysis of 91 Pesticide Residues in Groundwater by Gas Chromatography-Mass Spectrometry

ABSTRACT

BACKGROUND:

Fast screening of multiple pesticides in groundwater is an important technical support for comprehensively characterizing groundwater quality and ensuring groundwater safety.

OBJECTIVES:

To establish a rapid, easy and highly efficient method for the determination of 91 pesticides in groundwater.

METHODS:

By selecting and optimizing the water sample pretreatment method and gas chromatography-mass spectrometry analysis conditions, a rapid analysis method for the simultaneous determination of 91 pesticides in groundwater by gas chromatography-mass spectrometry (GC-MS) was established. The targets were determined by GC-MS and quantified by an internal standard. After optimization, the target substance adopts pulsed splitless injection, separated by Zebron Multiresidue-2 chromatographic column, and segmented selective ion scanning.

RESULTS:

Under the optimized conditions, pesticides showed good linearity with the correlation coefficient between 0.9901 and 0.9997 in the concentration range of 1.0-1000μg/L. The water sample was subjected to liquid-liquid extraction and concentration of dichloromethane and then tested on the machine, yielding method detection limits (MDLs) of 3.1-12.5ng/L, the average recoveries of 54.3%-129%, and the relative standard deviation (RSD) of 1.2% to 20%.

CONCLUSIONS:

Compared to previous studies, the method not only greatly improves the efficiency, reduces the cost of analysis, ensures the effectiveness of sample analysis, but also has wide applicability, high accuracy and high sensitivity. The method is more suitable for analysis of large batches of samples, which ensures the timeliness of sample analysis. The method has been successfully applied to the national groundwater pollution survey.

KEY WORDS: groundwater, pesticide residues, gas chromatography-mass spectrometry, fast analysis

HIGHLIGHTS

(1) A rapid method for the determination of 91 pesticides in groundwater was established, by liquid-liquid extraction-gas chromatography-mass spectrometry.

(2) The method not only covers more types and quantities of pesticides, but also has a lower method detection limit, high sensitivity, and good accuracy. It can be used for rapid screening of multiple types of pesticides in groundwater.

(3) The established method was used to analyze 231 groundwater samples from 7 provinces in China. Insecticides and herbicides were found, which strengthens the need for analysis and monitoring of pesticide residues in groundwater.
