【引用本文】 唐索寒, 李津, 潘辰旭, 等. 岩石铷-锶和钐-钕同位素标准物质的研制[J]. 岩矿测试, 2021, 40(2): 285-295. doi: 10.15898/j.cnki.11-2131/td.202011110140
TANG Suo-han , LI Jin , PAN Chen-xu , et al. Production and Certification of the Reference Material GBW04139, GBW04140 and GBW04141 as Rb-Sr and Sm-Nd Isotope Analysis References[J]. Rock and Mineral Analysis, 2021, 40(2): 285-295. doi: 10.15898/j.cnki.11-2131/td.202011110140

岩石铷-锶和钐-钕同位素标准物质的研制

中国地质科学院地质研究所, 自然资源部同位素地质重点实验室, 北京 100037

收稿日期: 2020-11-11  修回日期: 2021-01-29

基金项目: 国土资源公益性行业科研专项经费项目(201511064)

作者简介: 唐索寒,研究员,主要研究方向为同位素地球化学。E-mail:tangsuohan@163.com。

Production and Certification of the Reference Material GBW04139, GBW04140 and GBW04141 as Rb-Sr and Sm-Nd Isotope Analysis References

Laboratory of Isotope Geology, Ministry of Natural Resources, Institute of Geology, Chinese Academy of Geological Sciences, Beijing 100037, China

Received Date: 2020-11-11
Revised Date: 2021-01-29

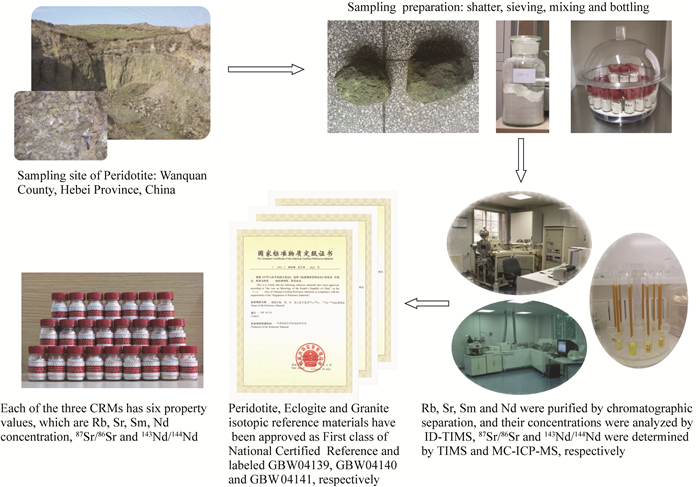

摘要:通常样品的87Sr/86Sr和143Nd/144Nd同位素比值分析采用SRM987、JNdi-1作为标准物质,它们分别是纯的碳酸盐和氧化物,适用于监控质谱测试过程。中国现有的钐-钕地质和铷-锶年龄标准物质,分别为玄武岩和钾长石,它们与很多地质样品的基质存在差别。仅有这两种基质的标准物质不能有效地监控不同地质样品Rb-Sr、Sm-Nd同位素分析过程,因此研制不同岩性的Rb-Sr、Sm-Nd同位素标准物质具有重要现实意义。本文采集中国典型地区的橄榄岩、榴辉岩和花岗岩作为候选物,严格按照《一级标准物质技术规范》(JJF 1006-1994)和《标准物质定值的通用原则及统计学原理》(JJF 1343-2012)等相关标准物质国家计量技术规范和国家标准,研制了橄榄岩、榴辉岩和花岗岩铷-锶、钐-钕同位素标准物质(编号为GBW04139、GBW04140、GBW04141),其中橄榄岩标准物质适用于高 Mg、Fe,低Rb、Nd含量样品的分析,榴辉岩和花岗岩标准物质适用于含有难溶副矿物的岩石样品的分析。每个标准物质具有6个特性量值,Rb、Sr、Sm和Nd含量分布分别为0.16~64μg/g、12~560μg/g、0.1~3.2μg/g和0.3~15.3μg/g,87Sr/86Sr比值分布为0.70446~0.71309,143Nd/144Nd比值分布为0.51115~0.51267,同位素比值精度达到或优于同类标准物质。这些特性量值更接近实际样品,使用时将更加有效和方便。该系列标准物质可用于校准仪器和评价方法,并能有效监控实验室此类样品的铷-锶、钐-钕同位素分析过程。

关键词: 岩石标准物质, 铷-锶同位素, 钐-钕同位素, 均匀性, 稳定性, 认定值

Production and Certification of the Reference Material GBW04139, GBW04140 and GBW04141 as Rb-Sr and Sm-Nd Isotope Analysis References

KEY WORDS: certified reference materials, Rb-Sr isotope, Sm-Nd isotope, homogeneity, stability, certified values

本文参考文献

[1]

Faure G.Isotopes:Principlesand applications (3rd edition)[M].Hoboken:Wiley,2004:928.

[2]

Dera G,Prunier J,Smithb P L,et al.Nd isotope constraints on ocean circulation,paleoclimate,and continental drainage during the Jurassic breakup of Pangea[J].Gondwana Research,2015,27:1599-1615.

[3]

Blaser P,Lippold J,Gutjahr M,et al.Extracting foraminiferal seawater Nd isotope signatures from bulk deep sea sediment by chemical leaching[J].Chemical Geology,2016,439:189-204.

[4]

Tillberg M,Drake H,Zack T,et al.In situ Rb-Sr dating of slicken fibres in deep crystalline basement faults[J].Scientific Reports,2020,10(1):1-13.

[5]

Fisher C,Bauer A,Vervoort J,et al.Disturbances in the Sm-Nd isotope system of the Acasta Gneiss Complex-Implications for the Nd isotope record of the early Earth[J].Earth and Planetary Sicence Letters,2020,530:115900.

[6]

Yang Y H,Zhang H F,Chu Z Y,et al.Combined chemical separation of Lu,Hf,Rb,Sr,Sm and Nd from a single rock digest and precise and accurate isotope determinations of Lu-Hf,Rb-Sr and Sm-Nd isotope systems using multi-collector ICP-MS and TIMS[J].International Journal of Mass Spectrometry,2010,290:120-126.

[7]

刘文刚,刘卉,李国占,等.离子交换树脂在地质样品Sr-Nd同位素测定中的应用[J].地质学报,2017,91(11):2584-2592.

Liu W G,Liu H,Li G Z,et al.The application of ion exchange resins in Sr-Nd isotopic assay of geological samples[J].Acta Geologica Sinica,2017,91(11):2584-2592.

[8]

Li C F,Chu Z Y,Guo J H,et al.A rapid single column separation scheme for high-precision Sr-Nd-Pb isotopic analysis in geological samples using thermal ionization mass spectrometry[J].Analytical Methods,2015,7(11):4793-4802.

[9]

朱志勇,潘辰旭,朱祥坤.利用套柱法快速分离提纯Sr和Nd元素[J].岩矿测试,2020,39(4):155-524.

Zhu Z Y,Pan C X,Zhu X K.Purification of Sr and Nd for isotope analysis with multiple-column method[J].Rock and Mineral Analysis,2020,39(4):155-524.

[10]

Li C F,Li X H,Li Q L,et al.Directly determining 143Nd/144Nd isotope ratios using thermal ionization mass spectrometry for geological samples without separation of Sm-Nd[J].Journal of Analytical Atomic Spectrometry,2011,26:2012-2022.

[11]

Li C F,Li X H,Li Q,et al.Rapid and precise determination of Sr and Nd isotopic ratios in geological samples from the same filament loading by thermal ionization mass spectrometry employing a single-step separation scheme[J].Analytical Chimica Acta,2012,727:54-60.

[12]

曾美云,陈燕波,刘金,等.高磷铁矿石成分分析标准物质研制[J].岩矿测试,2019,38(2):212-221.

Zeng M Y,Chen Y B,Liu J,et al.Preparation of high-phosphorusiron ore reference mayerials for chemical composition analysis[J].Rock and Mineral Analysis,2019,38(2):212-221.

[13]

Tanaka T,Togashi S,Kamioka H,et al.JNdi-1:A neodymium isotopic reference in consistency with La Jolla neodymium[J].Chemical Geology,2000,168:279-281.

[14]

张宏福.橄榄岩-熔体的相互作用:岩石圈地幔组成转变的重要方式[J].地学前缘,2006,13(2):65-75.

Zhang H F.Peridotite-melt interaction:Animportant mechanism or the compositional transformation of lithospheric mantle[J].Earth Science Frontiers,2006,13(2):65-75.

[15]

刘贻灿,李曙光,徐树桐,等.大别山北部榴辉岩的Sm-Nd年龄测定及其对麻粒岩相退变质时间的制约[J].地球化学,2001,30(1):79-87.

Liu Y C,Li S G,Xu S T,et al.Sm-Nd dating of eclogites from northern Dabie Mountains and constraints on the timing of granulite-facies retrogression[J].Geochimica,2001,30(1):79-87.

[16]

石玉若,张宗清,刘敦一,等.湖北省随州三里岗地区二长花岗岩Rb-Sr、40Ar/39Ar同位素年龄[J].地球学报,2005,26(1):17-20.

Shi Y R,Zhang Z Q,Liu D Y,et al.Rb-Sr and 40Ar/39Arages of the adamellite in Sanligang Area[J].Acta Geoscientica Sinica,2005,26(1):17-20.

[17]

王学求,张勤,白金峰,等.地球化学基准与环境监测实验室分析指标对比与建议[J].岩矿测试,2020,39(1):1-14.

Wang X Q,Zhang Q,Bai J F,et al.Comparison of laboratory analysis parameters and guidelines for global geochemical baselines and environmental monitoring[J].Rock and Mineral Analysis,2020,39(1):1-14.

[18]

Song Y,Frey F A.Geochemisty of peridotite xenoliths in basalt from Hannuoba,eastern China:Implications for subcontinental mantle heterogeneity[J].Geochimica et Cosmochimica Acta,1989,53:97-113.

[19]

李曙光,安诗超.变质岩同位素年代学:Rb-Sr和Sm-Nd体系[J].地学前缘,2014,21(3):246-255.

Li S G,An S C.Isotopes geochronology of metamorphic rocks:Rb-Sr and Sm-Nd systematics[J].Earth Science Frontiers,2014,21(3):246-255.

[20]

洪大卫,王涛,童英.中国花岗岩概述[J].地质论评,2007,53(增刊):9-16. Hong D W,Wang T,Tong Y.An outline about granitoids in China[J].Geological Review,2007

,53(Supplement):9-16.

[21]

张宗清,张国伟,唐索寒,等.南秦岭地质地层同位素年代[M].北京:地质出版社,2007. Zhang Z Q,Zhang G W,Tang S H,et al.Isotopic geochronology of south Qinling metamorphic strata[M].Beijing:Geological Publishing House,2007.

[22]

Choon-ki N,Takanori N,Koichi T.A systematic and practical method of liquid chromatography for the determination of Sr and Nd isotopic ratios and REE concentrations in geological samples[J].Chemical Geology,1995,123(1-4):225-237.

[23]

李潮峰,李献华,周红英,等.微量岩石样品中Rb-Sr和Pb一步分离及高精度热电离质谱测试[J].地球化学,2011,40(5):399-406.

Li C F,Li X H,Zhou H Y,et al.Single-step separation of Rb-Sr and Pb from minor rock samples and high precision determination using thermal ionization mass spectrometry[J].Geochimica,2011,40(5):399-406.

[24]

濮巍,赵葵东,凌洪飞,蒋少涌.新一代高精度高灵敏度的表面热电离质谱仪(Triton TI)的Nd同位素测定[J].地球学报,2004,25(2):271-274.

Pu W,Zhao K Z,Ling H F,et al.High precision Nd isotope measurement by Trion TI mass spectrometry[J].Acta Geoscientica Sinica,2004,25(2):271-274.

[25]

叶笑江,张宗清.Nd比值测定中的Sm,Nd分离——HDEHP分离法[J].分析测试学报,1990,9(3):6-10.

Ye X J,Zhang Z Q.Seperation of Sm and Nd in the determination of Nd ratio[J].Journal of Instrumental Analysis,1990,9(3):6-10.

[26]

Chu Z Y,Chen F K,Yang Y H,et al.Precise determination of Sm,Nd concentrations and Nd isotopic compositions at the nanogram level in geological samples by thermal ionization mass spectrometry[J].Journal of Analytical Atomic Spectrometry,2009,24:1534-1544.

[27]

何学贤,唐索寒,朱祥坤,等.多接收器等离子体质谱(MC-ICP-MS)高精度测定Nd同位素方法[J].地球学报,2007,28(4):405-410.

He X X,Tang S H,Zhu X K,et al.Precise measurement of Nd isotopic ratios by means of multi-collector magnetic sector inductively coupled plasma-mass spectrometry[J].Acta Geoscientica Sinica,2007,28(4):405-410.

[28]

全国标准物质管理委员会.标准物质的研制管理与应用[M].北京:中国计量出版社,2010. National Administrative Committee for Certified Reference Material.Preparation,managementand application of reference material[M].Beijing:China Metrology Publishing House,2010.

[29]

Li J,Tang S H,Zhu X K,et al.Production and certification of the reference material GSB 04-3258-2015 as a 143Nd/144Nd isotope ratio reference[J].Geostandards and Geoanalytical Research,2017,41(2):255-267.

[30]

全国标准物质管理委员会.标准物质定值原则和统计学原理[M].北京:中国质检出版社,2011. National Administrative Committee for Certified Reference Material.Reference material-general and statistical principles for certification[M].Beijing:China Zhijian Publishing House,2011.
