【引用本文】 周丹怡, 陈华, 陆太进, 等. 基于拉曼光谱-红外光谱-X射线衍射技术研究斜硅石的相对含量与石英质玉石结晶度的关系[J]. 岩矿测试, 2015, 34(6): 652-658. doi: 10.15898/j.cnki.11-2131/td.2015.06.008
ZHOU Dan-yi, CHEN Hua, LU Tai-jin, et al. Study on the Relationship between the Relative Content of Moganite and the Crystallinity of Quartzite Jade by Raman Scattering Spectroscopy, Infrared Absorption Spectroscopy and X-ray Diffraction Techniques[J]. Rock and Mineral Analysis, 2015, 34(6): 652-658. doi: 10.15898/j.cnki.11-2131/td.2015.06.008

基于拉曼光谱-红外光谱-X射线衍射技术研究斜硅石的相对含量与石英质玉石结晶度的关系

1.

国土资源部珠宝玉石首饰管理中心北京珠宝研究所, 北京 100013

2.

中国地质大学(北京)珠宝学院, 北京 100083

3.

国家珠宝玉石质量监督检验中心, 北京 100013

收稿日期: 2015-06-26  修回日期: 2015-09-22  接受日期: 2015-11-10

基金项目: 国土资源部公益性行业科研专项项目(201011005-2B)

作者简介: 周丹怡, 硕士, 宝石学专业。E-mail:lilyzdy@163.com

通信作者: 陈华, 研究员, 主要从事珠宝玉石研究。E-mail:chenhua63@163.com

Study on the Relationship between the Relative Content of Moganite and the Crystallinity of Quartzite Jade by Raman Scattering Spectroscopy, Infrared Absorption Spectroscopy and X-ray Diffraction Techniques

1.

Beijing Research Institute, National Gems & Jewelry Technology Administrative Center, Ministry of Land and Resources, Beijing 100013, China

2.

School of Gemology, China University of Geosciences(Beijing), Beijing 100083, China

3.

National Gemstone Testing Center, Beijing 100013, China

Corresponding author: CHEN Hua, chenhua63@163.com

Received Date: 2015-06-26
Revised Date: 2015-09-22
Accepted Date: 2015-11-10

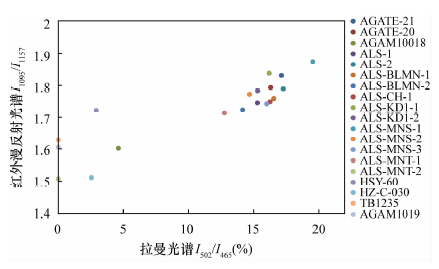

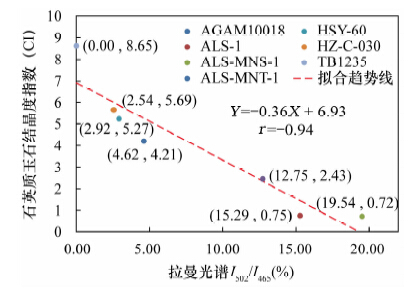

摘要:石英质玉石的成分除α-石英外, 还或多或少含有一种低温低压的SiO2矿物"斜硅石", 关于斜硅石的相对含量与石英质玉石结晶程度的关系还未见有研究。本文选取中国云南龙陵、安徽霍山、广西贺州和内蒙古阿拉善盟地区所产出的不同类型的石英质玉石为研究对象, 采用拉曼光谱、红外光谱、X射线衍射分析技术, 确定了斜硅石的相对含量与石英质玉石结晶程度之间的关系。结果表明, 石英质玉石中斜硅石的相对含量越高, 石英质玉石的结晶程度越低; 其中拉曼光谱中能够描述斜硅石相对含量变化的502 cm-1/465 cm-1两峰强度比值(X)与石英质玉石的结晶度指数(Y)基本上呈负相关关系:Y=-0.36X+6.93(r=-0.94)。此结论为利用无损检测手段大致判断石英质玉石的结晶程度提供了新的思路, 同时也为定性评价石英质玉石的品级提供了科学依据和理论约束。

关键词: 石英质玉石结晶度, 斜硅石相对含量, 拉曼光谱法, 红外光谱法, X射线衍射法

Study on the Relationship between the Relative Content of Moganite and the Crystallinity of Quartzite Jade by Raman Scattering Spectroscopy, Infrared Absorption Spectroscopy and X-ray Diffraction Techniques

KEY WORDS: crystallinity of quartzite jade, relative content of moganite, Raman Spectroscopy, Infrared Spectroscopy, X-ray Diffraction

本文参考文献

[1]

Heaney P J, Post J E. The Widespread Distribution of a Novel Silica Polymorph in Microcrystalline Quartz Varieties[J].Science, 1992, 255: 441-443. doi: 10.1126/science.255.5043.441

[2]

Heaney P J. Structure and Chemistry of the Low-pressure Silica Polymorphs[M]//Heaney P J, Prewitt C T, Gibbs G V. Silica. Washington D C: Mineralogical Society of America, 1994: 1-40.

[3]

Miehe G, Graetsch H. Crystal Structure of Moganite:A New Structure Type for Silica[J].European Journal of Mineralogy, 1992, 4: 693-706. doi: 10.1127/ejm/4/4/0693

[4]

Wahl C, Miehe G, Fuess H, et al. TEM Characterisation and Interpretation of Fabric and Structural Degree of Order in Microcrystalline SiO2 Phases[J].Contributions to Mineralogy and Petrology, 2002, 143: 360-365. doi: 10.1007/s00410-002-0348-7

[5]

刘鑫鑫. 南京六合方山沉积砾石层中玛瑙雨花石矿物学研究[D]. 南京: 南京大学, 2013.

Liu X X. The Mineralogical Study of Agates in the Sedimentary Gravel Layers from Fangshan, Liuhe County, Nanjing[D]. Nanjing: Nanjing University, 2013.

[6]

Graetsch H. Structural Characteristics of Opaline and Microcrystalline Silica Minerals[M]//Heaney P J, Prewitt C T, Gibbs G V. Silica. Washington D C: Mineralogical Society of America, 1994: 209-232.

[7]

Graetsch H, Flörke O W, Miehe G, et al. Structural Defects in Microcrystalline Silica[J].Physics and Chemistry of Minerals, 1987, 14: 249-257. doi: 10.1007/BF00307990

[8]

Graetsch H, Topalovic I, Gies H, et al. NMR Spectra of Moganite and Chalcedony[J].European Journal of Mineralogy, 1994, 4: 459-464.

[9]

Götze J, Nasdala L, Kleeberg R, et al. Occurrence and Distribution of 'Moganite' in Agate/Chalcedony:A Combined Micro-Raman, Rietveld, and Cathodolumin-escence Study[J].Contributions to Mineralogy and Petrology, 1998, 133: 96-105. doi: 10.1007/s004100050440

[10]

Zhang M, Moxon T. In Situ Infrared Spectroscopic Studies of OH, H2O and CO2 in Moganite[J].European Journal of Mineralogy, 2012, 24: 123-131. doi: 10.1127/0935-1221/2011/0023-2165

[11]

Schmidt P. Moganite Detection in Silica Rocks Using Raman and Infrared Spectroscopy[J].European Journal of Mineralogy, 2013, 25: 797-805. doi: 10.1127/0935-1221/2013/0025-2274

[12]

Hardgrove C. Thermal Infrared and Raman Microspectro-scopy of Moganite-bearing Rocks[J].American Mineralogist, 2013, 8: 78-84.

[13]

Sitarz M, Wyszomirski P, Handke B, et al. Moganite in Selected Polish Chert Samples:The Evidence from MIR, Raman and X-ray Studies[J].Molecular and Biomolecular Spectroscopy, 2014, 122: 55-58. doi: 10.1016/j.saa.2013.11.039

[14]

Zhang M, Moxon T. Infrared Absorption Spectroscopy of SiO2-Moganite[J].American Mineralogist, 2014, 99: 671-680. doi: 10.2138/am.2014.4589

[15]

Capel F C, Leon R L, Jorge V S, et al. Combined Raman Spectroscopic and Rietveld Analyses as a Useful and Nondestructive Approach to Studying Flint Raw Materials at Prehistoric Archaeological Sites[J].Archaeology & Anthropology Science, 2015, 7(2): 235-243.

[16]

Wenk H R, Shaffer S J, Tendelo G V, et al. Planar Defects in Low Temperature Quartz[J].Physica Status Solidi A:Applied Research, 1988, 107: 799-805. doi: 10.1002/(ISSN)1521-396X

[17]

Heaney P J. Moganite as an Indicator for Vanished Evaporites:A Testament Reborn?[J].Journal of Sedimentary Petrology A, 1995, 65: 633-638.

[18]

Moxon T, Ríos S. Moganite and Water Content as a Function of Age in Agate:An XRD and Thermogravimetric Study[J].European Journal of Mineralogy, 2004, 16: 269-278. doi: 10.1127/0935-1221/2004/0016-0269

[19]

Moxon T, Carpenter M A. Crystallite Growth Kinetics in Nanocrystalline Quartz(Agate and Chalcedony)[J].Mineralogical Magazine, 2009, 73(4): 551-568. doi: 10.1180/minmag.2009.073.4.551

[20]

Hatipoglu M. Moganite and Quartz Inclusions in the Nano-structured Anatolian Fire Opals from Turkey[J].Journal of African Earth Sciences, 2009, 54: 1-21. doi: 10.1016/j.jafrearsci.2009.01.004

[21]

Heaney P J, Mckeown D A, Jeferey P E, et al. Anomalous Behavior at the I2/a to Imab Phase Transition in SiO2-Moganite:An Analysis Using Hard-mode Raman Spectroscopy[J].American Mineralogist, 2007, 92: 631-639. doi: 10.2138/am.2007.2184

[22]

Bustillo M A. Moganite in the Chalcedony Varieties of Continental Cherts(Miocene, Madrid Basin, Spain)[J].Spectroscopy Letters, 2012, 45: 109-113. doi: 10.1080/00387010.2011.610410

[23]

Kingma K J, Hemley R J. Raman Spectroscopic Study of Microcrystalline Silica[J].American Mineralogist, 1994, 79: 269-273.

[24]

黄继武,李周编著. 多晶材料X射线衍射——实验原理、方法与应用[M] . 北京: 冶金工业出版社, 2012: 118-131.

Huang J W,Li Z. X-ray Diffraction of Polycrystalline Material-Experimental Principles, Methods and Application[M] . Beijing: Metallurgical Industry Press, 2012: 118-131.
[25]

Murata K J, Norman M B. An Index of Crystallinity for Quartz[J].American Journal of Science, 1976, 276: 1120-1130. doi: 10.2475/ajs.276.9.1120

[26]

何明跃, 王濮. 石英的结晶度指数及其标型意义[J]. 矿物岩石, 1994, 14(3): 22-28.

He M Y, Wang P. The Crystallinity of Quartz and Its Typomorphic Significance[J]. Minerals and Rocks, 1994, 14(3): 22-28.

[27]

Williams L A, Parks G A, Crerar D A, et al. Silica Diagenesis, Ⅰ[J].Journal of Sedimentary Petrology, 1985, 55: 301-311.

[28]

谢天琪. 辽宁阜新"战国红"玛瑙致色机理及结构成因研究[D]. 北京: 中国地质大学(北京), 2014.

Xie T Q. Study on the Color and Genesis of Zhanguohong Agate from Fuxin, Liaoning Province[D]. Beijing: China University of Geosciences(Beijing), 2014.
